Find Message Delivery Attempt Information

This page offers pointers into how to find message delivery attempt information for messages which have been injected into your GreenArrow platform but not yet reached their destination.

There are several different ways to see why emails are still in the queue. Your personal preference should guide which method you choose.

Engine UI

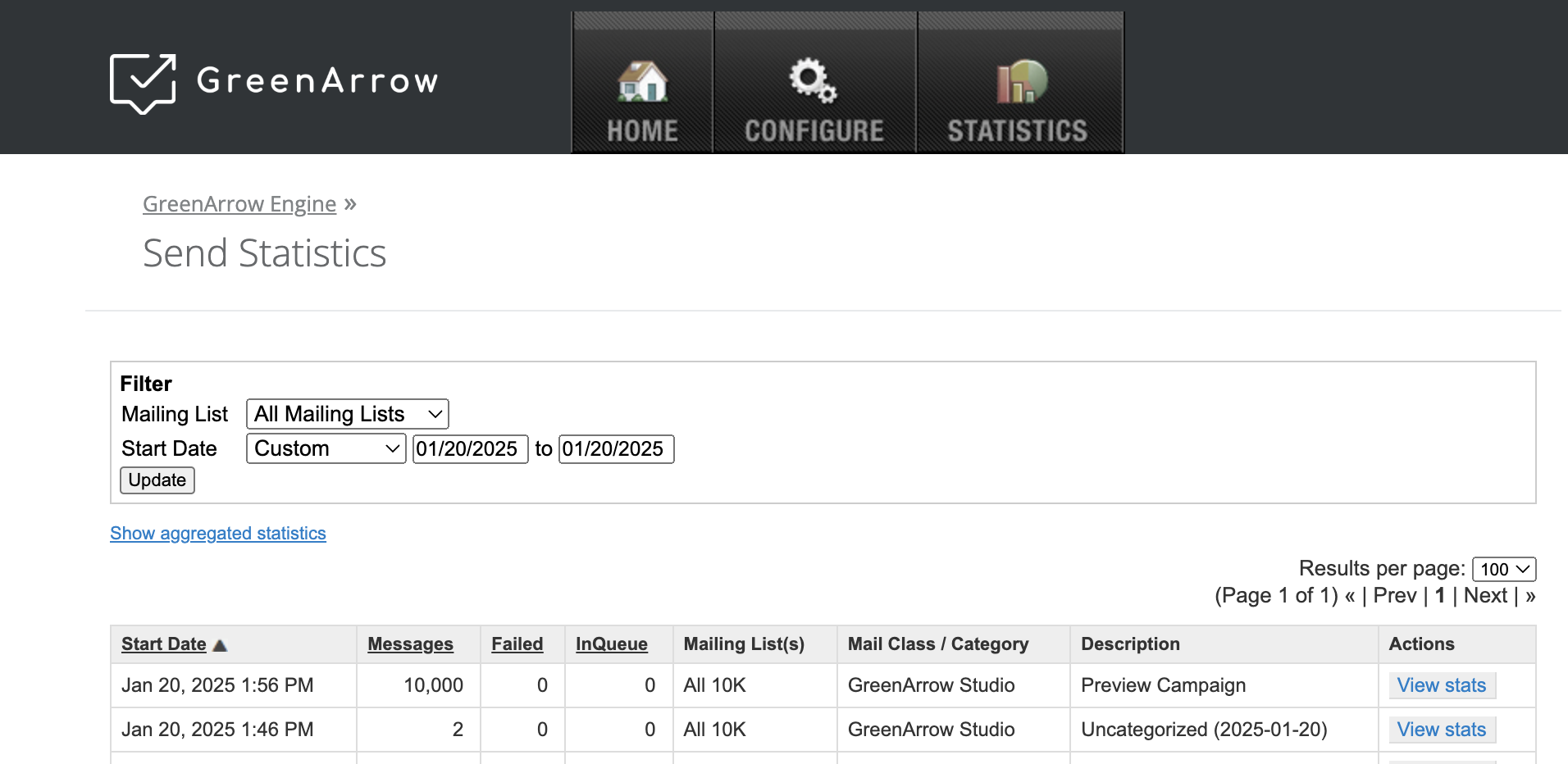

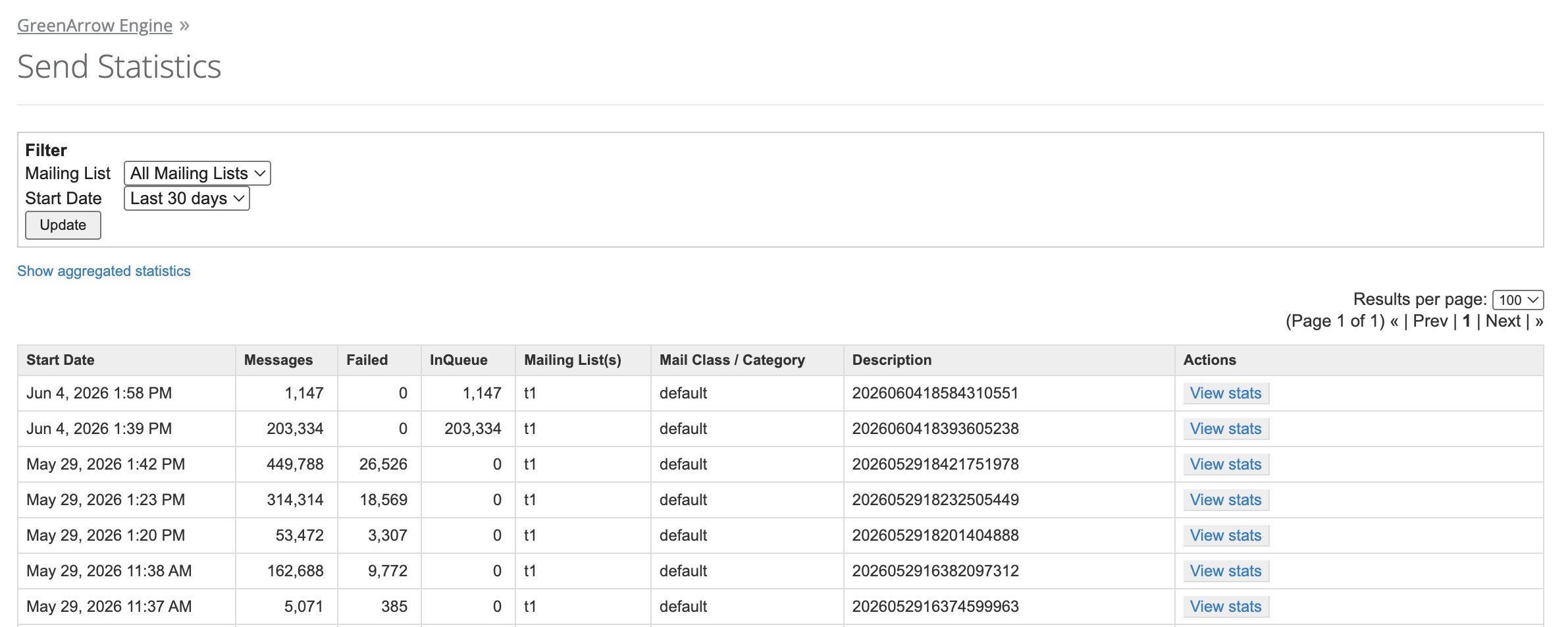

The Send Statistics Overview Page in the Engine UI will show you a table listing all sends or campaigns that happened during the specified timeframe:

The Failed and InQueue columns show how many messages from a given campaign either bounced or have not yet been delivered, respectively. Click on the View stats button in the row that pertains to the send you’re interested in, and you’ll be taken to the Send Statistics page for that send. There, you can click on the SMTP Server Stats tab where you can find details there about why emails for that send are not being delivered.

Studio UI

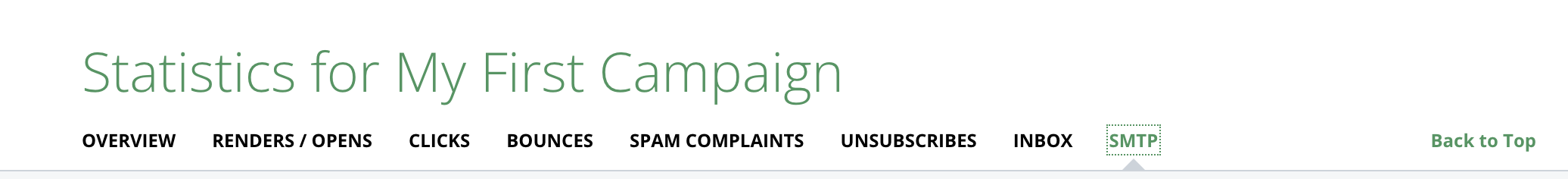

If you’re using Studio to send campaigns, you can view delivery information using the Campaign Statistics part of the UI. Once you’ve drilled into a specific campaign, click on the SMTP label to see the same data that’s available through the Send Statistics Pages in the Engine UI.

APIs

Both the Engine and Studio products have APIs that allow retrieval of delivery data.

Command Line

The hvmail_report command will print out various reports about all of GreenArrow’s deliveries (not those just related to one campaign/line of stats in Engine). The advantage with this tool is that you can pipe the output to tools like grep that let you exclude/include the strings that you’re interested in.

For example, running hvmail_report with the following options and then progressively piping its output through awk, sort, and head will display the total number of deferral and connmaxout attempts for the top 10 recipient domains over the past hour:

hvmail_report -a -q all --last "1 hour" --show-mtaid --show-address --show-time --status=deferral --status=connmaxout |
awk '{ match($0, /<[^@]+@([^>]+)>/, m); if (m[1]) counts[m[1]]++ }
     END { for (domain in counts) print domain, counts[domain] }' |
sort -k2,2nr |
head -10
